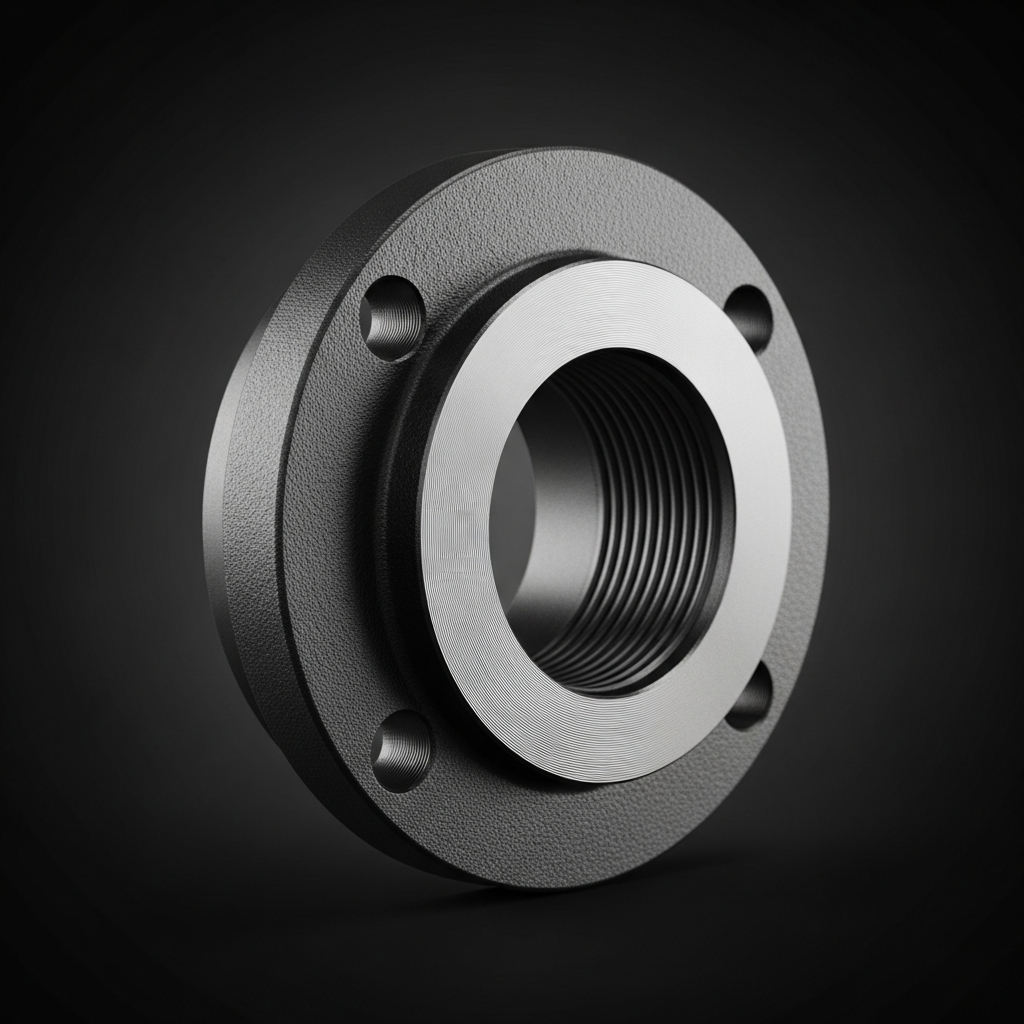

| Product Type | Flange |
| Flange Type | Threaded |
| Standard | ASME B16.5 |
| Pressure Class | Class 300 |
| Nominal Pipe Size (NPS) Range | 1/2" to 24" |
| Facing Type | Raised Face (RF) is standard; Flat Face (FF) or Ring Type Joint (RTJ) available upon request |
| Material Specification | ASTM A105 (Carbon Steel), ASTM A350 LF2 (Low Temp Carbon Steel), ASTM A182 F304/F304L (Stainless Steel), ASTM A182 F316/F316L (Stainless Steel), other alloys available |
| Thread Type | NPT (National Pipe Taper) per ASME B1.20.1 |
| Manufacturing Process | Forged |
| Application | General industrial piping, moderate pressure and temperature service, non-welded connections |
| Pressure-Temperature Ratings | As per ASME B16.5 Class 300 based on material group |
| Marking | ASME B16.5, Class 300, Material Grade, Manufacturer's Name/Trademark, Heat Number, Size, Schedule |
| Inspection Standards | ASME B16.5, MSS SP-44, API 6A (where applicable for specific applications) |
| End Connection | Female NPT thread on the bore, Flanged on the face |
| Dimensional Tolerance | As per ASME B16.5 |
