API 6BX Ring Type Joint Flange
Ring type joint flanges sourced to API 6BX for pressure systems that cannot rely on soft gaskets. The precision-machined groove and metal BX ring form a pressure-energised seal that holds under vibration, thermal cycling and high differential pressure. Supplied in A105 and LF2 grades with matching ring gaskets available on the same order, and custom machining for non-standard bores at our own workshop. Tell us your size and pressure class and we will source the complete, certified flange set for you.
Technical Specifications
| Standards | API 6BX, ASME options |
|---|---|
| Connection | Ring Type Joint |
| Availability | Custom Manufacturing |
Keep Exploring
Related Products

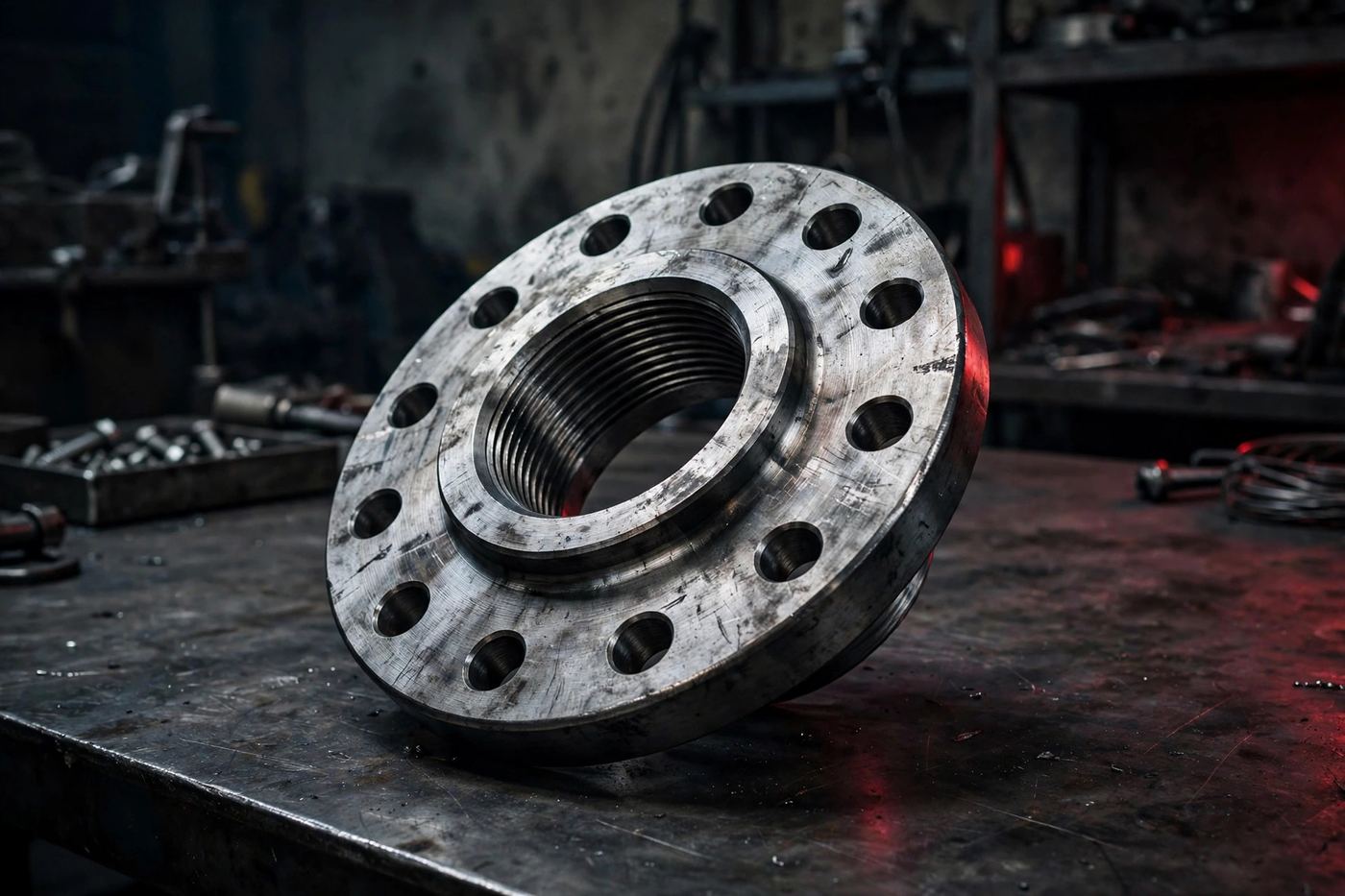

API Companion Flange
API companion flange with threaded bore for wellhead and pipeline connections — A105 and LF2, 2,000 to 15,000 PSI, RF and RTJ facings.

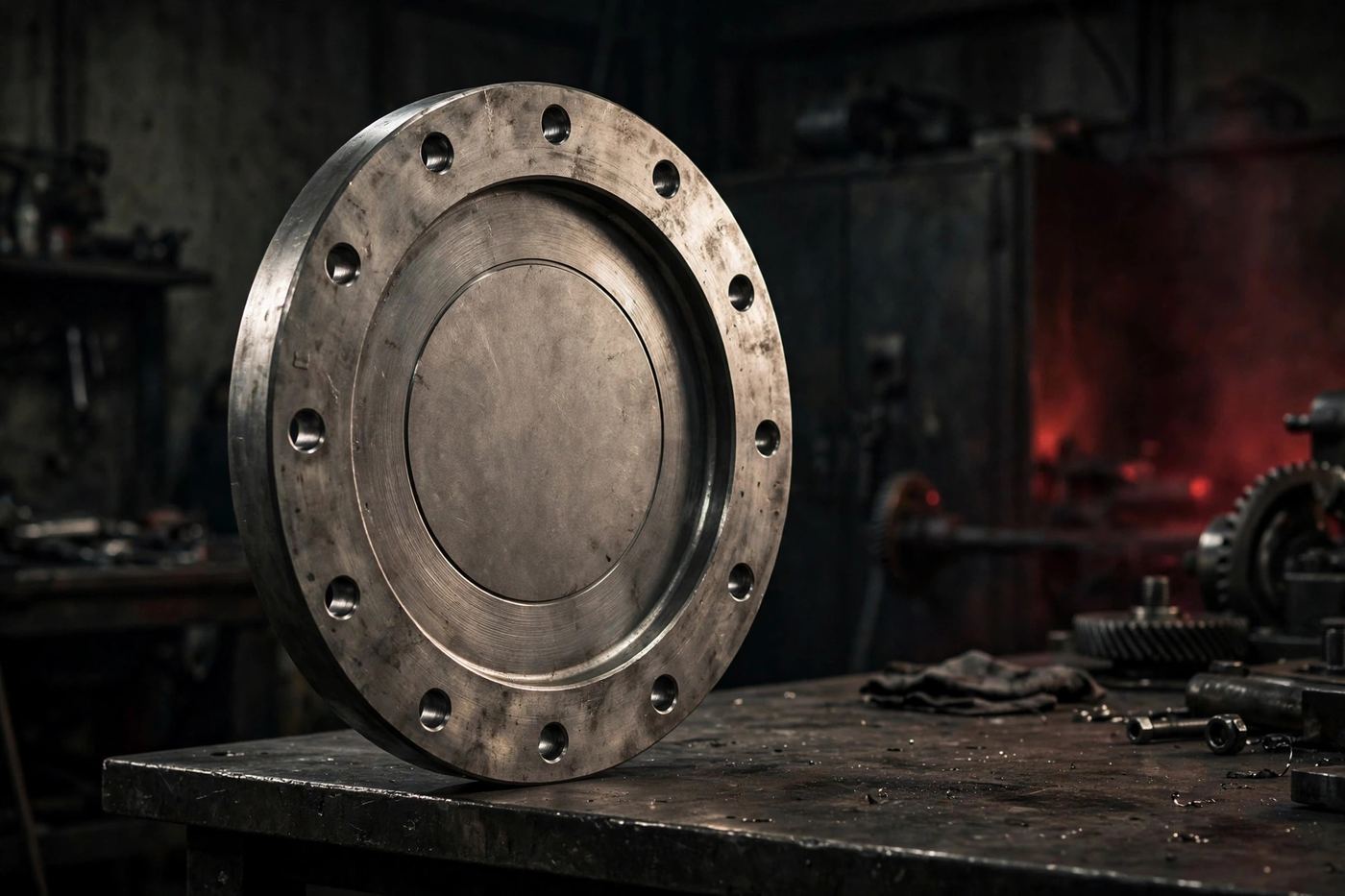

Blind Flange RTJ
